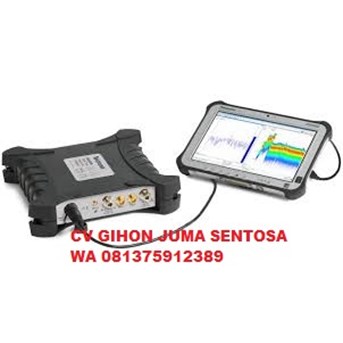

The RSA503A was built to bring real-time spectrum analysis to solving the problems of spectrum managers, interference hunters and network maintenance personnel who need to track down hard to find interferers, maintain RF networks and keep records of their efforts. The heart of the system is the USB-based RF spectrum analyzer that captures 40 MHz bandwidths with great fidelity in harsh environments. With 70 dB dynamic range and frequency coverage to 7.5 GHz, all signals of interest can be examined with high confidence in your measurement results. The USB form factor moves the weight of the instrument off of your hands, and replaces it with a lightweight Windows tablet or laptop. Holding a light PC instead of a heavy spectrum analyzer means you can move faster, for longer, and get your work done faster.
The optional tracking generator enables gain/loss measurements for quick tests of filters, duplexers and other network elements, and you can add cable and antenna measurements of VSWR, return loss, distance to fault and cable loss as needed.
Features:
9 kHz to 3.0 GHz frequency range covers a broad range of analysis needs
40 MHz acquisition bandwidth enables real time analysis for transient capture and vector analysis
Standard GPS/GLONASS/Beidou receiver for mapping and reference oscillator accuracy enhancement
Optional tracking generator for gain/loss, antenna and cable measurements
Streaming capture can be used to record and play back long term events
Mil-Std 28800 Class 2 environmental, shock and vibration specifications for use in harsh conditions
Internal battery for extended field operations
SignalVu-PC software offers real time signal processing with DPX
Spectrum/Spectrogram minimizes time spent on transient and interference hunting
100 μsec minimum signal duration with 100% probability of intercept ensure you see problems first time, every time
Application programming interface included for development of custom programs
Applications
Spectrum management
Interference hunting
Maintenance, installation and repair of radio networks
What's In The Box:
(1) 9 kHz - 3.0 GHz/40 MHz Bandwidth Battery Operated USB Real Time Spectrum Analyzer
(1) USB 3.0 cable (2 M)
(1) A-A connection
(1) Screw lock
(1) Shoulder strap
(1) Tablet
(1) Quick-start manual (printed)
(1) Connector covers
(1) WFM200BA Li-Ion rechargeable battery pack
(1) WFM200BA Li-Ion battery pack instructions (printed)
(1) AC power adapter
(1) Power cord
(1) USB memory device with SignalVu-PC, API and documentation files
(1) Carrying Case
