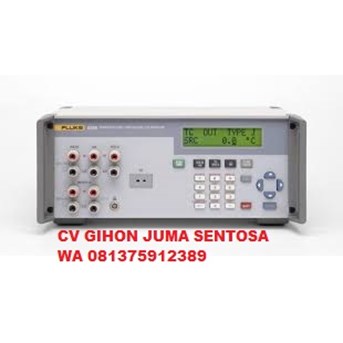

The Fluke 525B temperature / pressure calibrator is a workhorse combination of high accuracy and broad functionality for temperature and pressure instrument calibration. Compact and economical, the Fluke 525B is a benchtop instrument is well suited for both traditional calibration laboratories as well as process plant environments in which a wide range of instruments, transmitters, field calibrators, P/I converters, transducers, and temperature probes require calibration. The Fluke 525B is a versatile performer that fills the gap between lower accuracy handheld field calibrators and more expensive high-end multifunction calibrators.
The Fluke 525B temperature / pressure calibrator is the most accurate Fluke temperature calibrator, sourcing and measuring a complete range of RTDs, thermocouples, and thermistors. It also measures pressure covering common ranges from 1 inch (6900 Pa) of water up to 10,000 PSI (69 Mpa) using the Fluke Calibration 700 Series or 525A-P pressure modules. Plus, the dc voltage and current specifications of the Fluke 525B enable you to calibrate other process calibrators and a wide variety of other instruments with accuracy that rivals any calibrator in its price range.
From start to finish, the Fluke 525B temperature / pressure calibrator is designed for ease of operation. The intuitive front panel design features large keypads and display that help reduce training time and make the 525B comfortable to use even for long periods of time. Plus, you can store frequently used constants for a variety of probes in memory for faster setup on the job.
The Fluke 525B can be used with MET/CAL Plus Calibration Software (v 6.11 or later) to meet the stringent documentation and reporting requirements imposed by quality standards such as ISO 9000. MET/CAL Plus is a powerful software environment for creating, editing, testing, and documenting calibration procedures, and for performing automated calibrations.
Features:
Simulates and measures all ANSI thermocouples
As well as L and U types
Direct input for storage of ITS-90 RTD constants
RTD source uncertainties to 0.03°C
Converts easily to any pressure unit
Sources DC voltage and current
MET/CAL Plus Calibration Management Software
Or custom programs w/ RS-232-C & GPIB interface
Eight user programmable setpoints
NIST-traceable calibration with data is included
What's In The Box:
(1) 525B Getting Started Guide, Part No. 3064079
(1) 525B CD-ROM (contains the 525B Users Manual and 525B Getting Started Guide), Part No. 3064087
(1) Power Cord (120 V cord, Part No.1618621 or 240 V cord, Part No. 769422)
(1) Thermocouple Shorting Jumper, Part No. 610747
