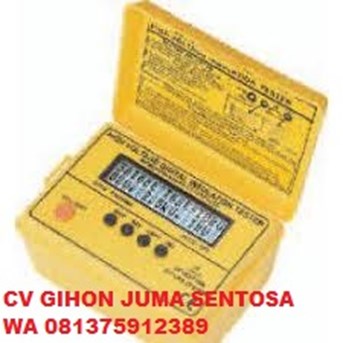

SEW 2804 IN 10KV Digital Insulation Tester

Update Terakhir
:
16 / 12 / 2019
Min. Pembelian
:
1 Unit
Dilihat Sebanyak
:
28 kali

Harga

CALL
Bagikan
:
CV. Gihon Juma Sentosa Merupakan Distributor Untuk Kebutuhan Instrument Industri, Bahan kimia Merck,Instrument laboratorium pendidikan. Kami Menyediakan Gas Industry , alat laboratorium, Alat Survey dan Bahan Kimia teknis kebutuhan skala besar.

Perhatian !

Perusahaan ini terdaftar sebagai Free Member. Hindari melakukan pembayaran sebelum bertemu penjual atau melihat barang secara langsung. COD (Cash On Delivery) atau bertemu langsung dengan penjual merupakan metode transaksi aman yang kami sarankan.

Detail SEW 2804 IN 10KV Digital Insulation Tester

HEAT INSULATION

FEATURES
Microprocessor-controlled.
Four insulation test voltages.
Insulation resistance; auto ranging on all ranges.
Bargraph indicates test voltage; rise and decay can be observed during tests.
Visual and audible warning if external voltage is present.
EnerSave™ feature to extend battery life.
2 Lines × 16 characters large LCD.
Low battery consumption.
Low battery indicator.
Overload protection.
Auto-off.
Show test time duration (up to 99.9s) for easy comparison.
EEPROM calibration.
Built-in carry case and test leads in separate pouch.

Specification
Test Voltage (DC V)
1kV/2.5kV/5kV/10kV
Measuring Ranges (Auto-Ranges)
0-50GΩ / 0-125GΩ / 0-250GΩ / 0-500GΩ
Accuracy
0-50GΩ : ±3% rdg
50-500GΩ : ±5% rdg
Dimensions
170(L) × 120(W) × 95(D)mm
Weight (Included Battery)
Approx. 930g
Power Source
1.5V(AA) × 8
Safety Standard
EN 61010-1
EN 61326-1
