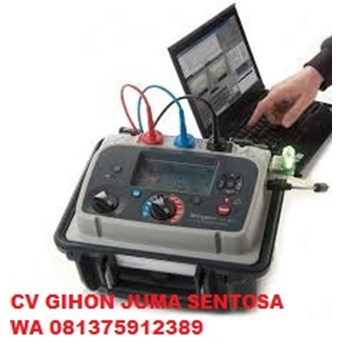

MEGGER MIT525 5KV Insulation Resistance Tester

Features:
Small and light
Lithium ion battery with ultra fast charge
CATIV 600V rated
Mains / line operation even with totally dead battery
Tough dual case construction
Fully specified guard terminal performance
High 3mA noise immunity
Dedicated AC/DC voltage range with frequency (Hz) measurement
Date and time stamped test results
User settable test voltage preset
Measures up to 10 TΩ
PI, DAR, DD, SV and ramp test
Improved productivity – operate from line power/mains if battery dead
Li ion battery - extended capacity, rapid charge
Advanced memory with time/date stamp

The Megger MIT525 Insulation Resistance Tester is an advanced 5kV test set for the diagnostic testing and maintenance of high voltage electrical equipment. In addition to measuring insulation resistance to 10TΩ, the MIT 525 also offers polarisation index, dielectric absorption ratio, step voltage, dielectric discharge and ramp testing.
In addition, the Megger MIT525 has advanced memory storage that allows test results to be logged complete with time/date stamping and simple recall of results to the screen. A fully isolated USB interface is used for the safe transfer of data to the supplied Megger PowerDB Lite management software package.

Simple operation is ensured with the two rotary switches while the large backlit display allows multiple results including resistance, voltage, leakage current, capacitance, battery level and test time to be displayed simultaneously.
Supplied in a rugged case that provides ultimate protection and a clip on lead pouch, the Megger MIT525 Insulation Tester is an extremely portable instrument with a CAT IV 600V safety rating in accordance with IEC 61010.

Includes:
User guide CD
Power lead
10 ft (3 m) leadset x 3, medium insulated clips
Power lead
USB cable
PowerDB Lite software
