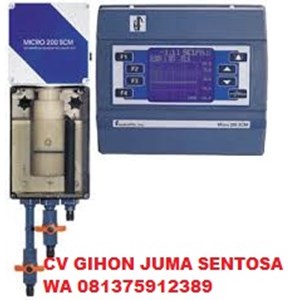

HF Scientific 19550 SCM II Streaming Current Monitor System

The MicroTSCM Streaming Current Monitor establishes a new level of control for plant operators that depend on Streaming Current to maintain water quality. Unlike other systems, the MicroTSCM can be calibrated to a known Ion Charge unit ( ICu) value, using a cationic polymer solution. Once calibrated, the operator can use the MicroTSCM to determine the control set-point for the plant. This set-point is established through optimization and it reflects the actual ICu of the sample stream.

Establishing an actual ICu value for the control set-point ensures the operator can always return to the same conditions in the event of a plant upset, equipment failure, or shut down. Routine calibration ensures that the integrity of the output can be maintained by compensating for standard wear-and-tear on the probe and electronics.

The graphical display of the MicroTSCM monitor provides the operator a fast and easy way to keep up with what is going on inside the plant. Historical trending of readings over the previous 8 or 24-hour period is continuously displayed as a graph on the screen.

The sensor design incorporated into the MicroTSCM was developed to operate under the most turbid conditions. The HF MicroTSCM monitor, coupled with leading-edge sensor technology provides an easy-to-use tool for precise control over your chemical dosing system.

Specification:
Range     ± 10.00 ICu ( SCU)
Resolution     0.01 ICu ( SCU)
Accuracy     ± 1% of full scale
Response time     1 second
Alarms     2 settable Hi/ Lo/ Off
1 system alarm
1 flow alarm ( requires optional hardware)
Average time     User selectable
Analog output     4-20 mA
0 to 10 VDC
Digital outputs ( optional) RS-232 serial
RS-485 serial
Display     Graphical trending and numeric
Sensor probe     Submersible to a depth of 120mm up to 6 to 10 liters per minute flow rate required
Wetted materials     HPDE, PTFE, Stainless steel, Neoprene, ABS
