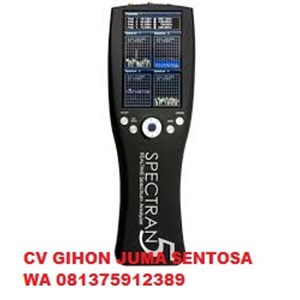

Spectran V5 RealTime RF Analyzer HF 80120 can perform 12GHz scans or logs. This product is engineered to reliably and effectively capture even the shortest or weakest of signal transmissions. The Handheld V5 HF80120's lightweight portability makes it an essential tool for interference hunting, field testing, and compliance testing as well. Included with this product is real time spectrum analyzer software, the RTSA Suite, software offering unparalleled features and functions both to field analysis work and bench top laboratory testing. All of this works together to make the HF 80120 Spectran V5 Handheld Spectrum Analyzer the optimal RF spectrum analyzer for cost efficient and dependable measurements.
Features:
Frequency Range – 9kHz – 12GHz
Real Time Bandwidth – 80MHz (opt. 160MHz)
Max. Power at RF input (50Ohm) +20dBm
Displayed Average Noise Level (internal pre-amp on) typ. 150 dBm/Hz
Amplitude accuracy (typ.) +/- 1dB
Frequency reference accuracy 0.5ppm (opt. 5ppb)
RBW (resolution bandwidth) 1Hz to 40MHz
Detector – Min, Max, AVG, Peak, QPeak
Attenuation Range – 45dB (0.5dB steps incl. pre-amp)
Traces – ACT, AVG, MAX, MIN
Views – Spectrum, Persistence Spectrum, Spectrogram/Waterfall, Histogram
What's In The Box:
(1) Pre-installed 20dB internal preamplifier
(1) Pre-installed internal 8000 mAh LiPO battery
(1) OmniLOG 70600 Radial Isotropic Antenna
(1) AC Power Adapter / Charger
(1) 6 foot USB cable
(1) Flash drive containing PC Software and user manuals
(1) Watertight, shockproof foam-lined carrying case
