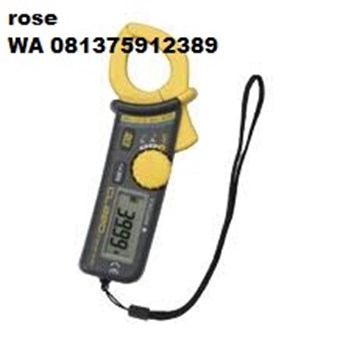

CL200 series has basic function of AC/DC current measurement. These clamps allow you to measure current range from 40mA to 2000A. Choose your desired diameter of measurable conductor from 24mm to 55mm.
Features:
Light weight & compact design
Mean value display
AC Current: 40/300A
24mm in diameter of measurable conductor
Sleep function
Approved for conformity to safety standards EN61010-1, EN61010-2-032 (CAT. III 300 V)
General Specifications
Parameter Specification
Method of Detection Mean Value
Diameter of Measurable conductor Ø24MM at maximum
Display LCD (Digital Display: 3999 Counts)
Response Time (Approx.) 2 Seconds
Range Switching Auto-Range
Data Hold On All range
Ambient Temperature and Humidity 0-40˚C, 85% RH or less (no condensation)
Influence of external Magnetic Field 1A or less at 400 A/m
Influence of Conductor Position ±(2% rdg + 5dgt)or Less
Circuit Voltage 300Vrms or less
Withstanding Voltage 3.7kV AC for one minute
Power Supply LR-44 x2(3V) or SR-44 x2
Battery Life Approx. 11 hours (continuous)
Consumed Current Approx. 9mA
Sleep Function Automatically powered down in about 5 minutes after last switch operation
Dimensions Approx. 59(W)x147(H)x25(D)mm
Weight Approx. 100g
