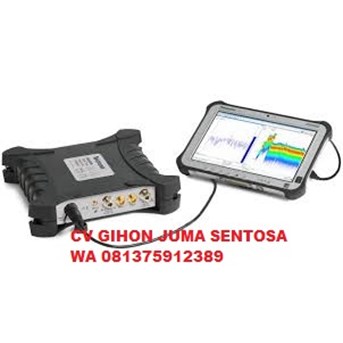

The RSA507A from Tektronix is a RSA500A series portable spectrum analyzer. It offers high performance portable spectrum analysis in a rugged battery powered package. Typical applications include spectrum management, interference hunting, maintenance, installation and repair of radio networks. The analyzer is built to bring real time spectrum analysis to solving the problems of spectrum managers, interference hunters and network maintenance personnel who need to track down hard to find interferers, maintain RF networks and keep records of their efforts. The heart of the system is the USB based RF spectrum analyzer that captures 40MHz bandwidths with greater fidelity in harsh environments. It performs 17 measurements including spectrum, spur search, spectral emissions and DPX.
Features:
9 kHz to 7.5 GHz frequency range covers a broad range of analysis needs
40 MHz acquisition bandwidth enables real time analysis for transient capture and vector analysis
Standard GPS/GLONASS/Beidou receiver for mapping and reference oscillator accuracy enhancement
Optional tracking generator for gain/loss, antenna and cable measurements
Streaming capture can be used to record and play back long term events
Mil-Std 28800 Class 2 environmental, shock and vibration specifications for use in harsh conditions
Internal battery for extended field operations
SignalVu-PC software offers real time signal processing with DPX
Spectrum/Spectrogram minimizes time spent on transient and interference hunting
100 μsec minimum signal duration with 100% probability of intercept ensure you see problems first time, every time
Application programming interface included for development of custom programs
Applications
Spectrum management
Interference hunting
Maintenance, installation and repair of radio networks
What's In The Box:
(1) 9 kHz - 7.5 GHz/40 MHz Bandwidth Battery Operated USB Real Time Spectrum Analyze
(1) USB 3.0 cable (2 M)
(1) A-A connection
(1) Screw lock
(1) Shoulder strap
(1) Tablet
(1) Quick-start manual (printed)
(1) Connector covers
(1) WFM200BA Li-Ion rechargeable battery pack
(1) WFM200BA Li-Ion battery pack instructions (printed)
(1) AC power adapter
(1) Power cord
(1) USB memory device with SignalVu-PC, API and documentation files
(1) Carrying Case
