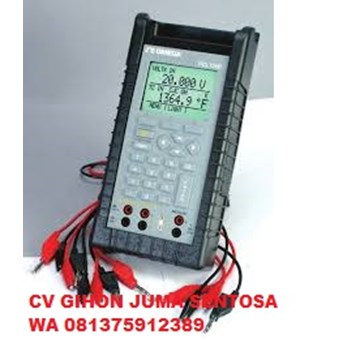

OMEGA PCL1200 Portable Multifunction Calibrator

PCL1200 multifunction calibrator has a feature set unmatched by other high-accuracy handheld calibrators in its price range. It is portable, provides the functions and accuracy of a laboratory-grade instrument, and has everything needed for virtually any calibration task. It can also measure and source thermocouples, RTDs, current, voltage, and frequency, and it can source pulse trains. It has a communications port for pressure modules and an isolated mA/V readback circuit. Arrow keys, direct numeric keypad entry, and 3 software-driven function buttons combine with a large, backlit, menu-driven graphics display to provide a highly intuitive yet powerful interface.

A built-in 250 Ohm resistor for HartTM compatibility, compatibility with smart transmitters and PLCs, full fuseless protection, and a serial communications port for control using ASCII commands are additional features that make the PCL1200 indispensable for calibration tasks. A protective rubber boot is included with each unit. Measuring Pressure with the PCL1200 With a PCL-PMA pressure module adaptor.

Features:
Measures and Sources T/C (13 Types), RTDs (13 Types), Ohms, Current, Voltage, Frequency
Sources Pulse Trains
Isolated mA/V Readback Circuit for Complete Transmitter Calibration
Pressure Module Communication Port Compatible with OMEGA
PCL-PM Series Pressure Modules
Built-In 24 V Supply Can Drive 4 to 20 mA Loops Up to 1000 Ohms
Direct Entry of Custom RTD Coefficients (R0, A, B, C)
All Source Modes Can be Programmed with Dedicated Setpoints to Speed Calibration and Linearity Tests
Highest Accuracy in Class—to 0.015% of Reading
Meets CE Requirements and is Designed to IEC 1010 Safety Standards
Supplied with Full Rubber Boot

What's In The Box:
(1) Test leads
(1) Protective rubber boot
(1) Calibration certificate
(4) "AA" alkaline batteries
(1) Type K thermocouple
(1) Retractable thermocouple cable
(1) Operators manual.
