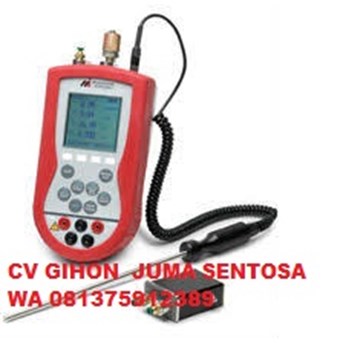

MERIAM MFT4010 Modular Multifunction Calibrator W/ HART Communicator

The MFT 4010 is a break-through combination calibrator / HART communicator that truly reduces the time spent on field calibrations. The MFT 4010 Series delivers the versatility of a calibrator and the convenience of HART communications in one handheld unit. Users can view up to four measurements simultaneously on the high resolution LCD or compare HART PV and AO values to corresponding values measured by the NIST traceable MFT. Documentation of calibration results and HART configurations is standard.

Available modules include differential, gauge, vacuum and absolute pressure as well as temperature, and voltage/current. A voltage and current meter is integral to the base unit. All HART field devices can be configured, polled, and trimmed using HART communications. Device Specific commands for supported devices are included with the MFT.

Features:
Multifunctional Tester
Modular Calibrator
HART Communication
Documentation with Meriam's DMS Database Software
Device Specific HART commands for smart Analytic, Flow, Level, Pressure, Temperature & Valve devices
Intrinsically Safe option
Three sensor bays for a variety of pressure, temperature and electrical measurement and simulation Sensor
       Modules
Manage calibrations, store calibration data, store HART configurations and upload to DMS Database software
Field Upgradeable via Internet download of HART device profiles (DOFs) and operating firmware
± 0.025% FS traceable to NIST with full temperature compensation from 23°-122° F
Standard field re-calibration feature for all sensor module

What's In The Box:
(2) Blank inserts for open sensor bays
(1) AC Power adapter, 100 - 240 Vac for US plug, International plug kit
(1) HART lead kit with 250 ohm shunt adaptor for HART communication
(1) Test lead kit
(1) RS-233 Serial communications cable
(1) Hard copy user’s manual
(1) Protective rubber boot
(1) DPC Manager utility - updates firmware and HART drives
