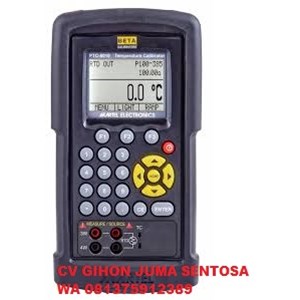

MARTEL MC1010 Multifunction Process Calibrator

Features:
Simple, straight forward, Intuitive user interface
Easy to learn yet powerful 3 Key Martel Menu System
New ClearBrite™ Graphic Display
New streamlined case design
±0.4°C thermocouple/±0.3°C RTD accuracy
±0.015% of reading electrical accuracy
Thirteen (13) T/C types and Thirteen (13) RTD types, plus YSI 400
Read and source modes
Full Function 4 to 20 mA read, source, simulate and read/power modes with ±0.015% of reading accuracy
Source or read 0 to 20 volts (±0.015% of reading accuracy)
Direct keyboard entry enables quick output changes
Store up to nine (9) setpoints for each output function
RTD function compatible with all pulsed transmitters
RS232 serial interface
Communication port compatible with both Fluke 700 Series and BetaPort-P pressure modules: Gauge Digital Pressure Modules, Absolute Digital Pressure Modules, Differential Digital Pressure Modules

This multifunction calibrator provides a feature set unmatched in high accuracy, hand-held calibrators in its price range. The MC-1210 multi function calibrator provides the functions and accuracy associated with fixed-installation, laboratory instrument, and has everything needed for virtually any calibration tasks. Measure and source thermocouples, RTDs, current, voltage, and frequency, and source pulse trains. A communications port compatible with both Fluke® 700 Series and Beta Calibrators pressure modules is provided, as is an isolated mA/V read-back circuit. Arrow keys, direct numeric keypad entry, and three software driven function buttons, plus a large backlit, menu-driven graphics display combine to provide a highly intuitive, simple yet powerful operator interface. Built-in 250 Ohm resistor for HART compatibility, compatibility with smart transmitters and PLCs, full fuseless protection, are just some of the additional features that make the process calibrator the single most indispensable tool available for virtually any calibration task.
