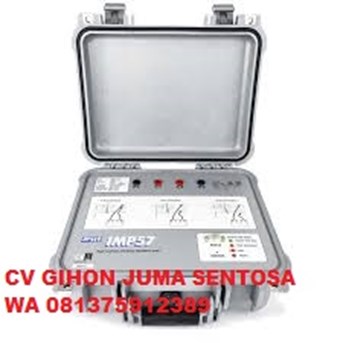

IMP57 is an optional accessory to measure Loop/Line fault loop impedance and calculating the prospective shortcircuit current.
IMP57 can be used together with the devices of series GSC, SIRIUS, Combi and Macrotest Gx further to ZG47, Fulltest3 and Speed418. The high generated test current (approx. 200A) allows carrying out measurements with high resolution (0.1mΩ) and, therefore, obtaining correct and precise results, even near MT/BT transformer cabinets (TN systems) and, in general, carrying out measurements in which the devices’ basic resolution is not sufficient to guarantee correct measurements of prospective short-circuit currents according to the project’s theoretical data. L’IMP57 is provided with a comfortable and resistant case structure, it has no display and can be interfaced through serial RS232 to Master devices in order to read the results. 4-terminal measurement allows not considering the effect of the provided cables’ resistance and, hence, no preliminary calibrations are necessary.
Feature
Loop/Line Impedance measurement P-P, P-N and P-PE
Maximum and Minimum calculation values of prospective short circuit current
Measures with high resolution (0.1mOhm)
4-wire measurement method
RS-232 interface for connection with Master meters
LED indication on frontal panel
Voltage AC measurement
Frequency measurement
What's in the Box:
(1) C7000 : Set of cables for 10A test, lenght 3m
(1) C2001 : Optical/RS-232 cable
(1) B80 : Carrying bag
(1) ISO9000 calibration certificate
(1) User manual on CD-ROM
