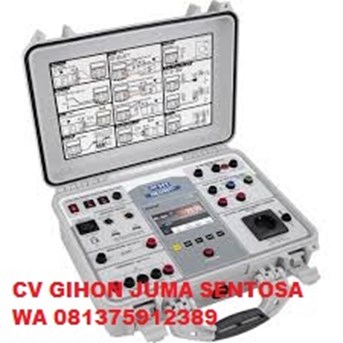

Professional Meter for Safety Test on Device/ Switchboards FULLTEST3 effects all tests required by IEC/EN60204-1:2006 and IEC/EN61439 in a simple, reliable and fast way. More than that the instrument carries out a considerable number of safety tests which makes it as a flexible solution also in compliance with other standards. Besides continuity of protection conductors, insulation and withstanding, FULLTEST3 tests type A, AC, and B general, selective and delayed RCDs, curve B, C, D, and K MCBs and type gG and aM fuses, line/fault impedance with standard or high resolution, non-trip earth loop impedance, leakage current, etc.
FULLTEST3 is provided with innovative interfaces such as a colour touch-screen graphical display, 3 USB ports for PC connection, a USB memory stick, a USB printer and bar code readers. FULLTEST3 is the ideal partner for designers, manufacturers and installers.
FULLTEST 3 is the Most Advanced Solution for a Complete Compliance with the ActuaL Guidelines FULLTEST3 is designed to satisfy the requirements of the IEC/EN60204-1:2006 guideline (electrical equipment of industrial machines) and for the new series of prescriptions relative to the IEC/EN61439-1 guideline (Switchgear panels). This last guideline require, among other tests, the Dielectric tests with a test voltage up to 5100V!
The innovative FULLTEST3 model was designed for safety electrical test verifies on machines, switchboards in complete compliance with IEC/EN60204-1:2006 and IEC/EN61439-1 guidelines. For this aim the instrument performs a really high number of test which place it as flexible solution also to satisfy all or partially tests of other guidelines (e.g. routine test of IEC/EN60335-1 guideline).
Features:
Continuity of protection conductors with 200mA
Continuity of protection conductors with I>25A, V<12V AC
Insulation resistance with 100,250,500,1000V DC
Withstanding with programmable test voltage from 250V to 5100V AC
Discharging time of internal capacitances and at the power input
Leakage/absorbed current and power consumption at the built-in test socket
Leakage current by means of the external transducer HT96U (optional)
Type A, AC, and B general, selective, and delayed RCDs up to 1000mA
Line/fault impedance with prospective short circuit current calculation
High resolution line/fault impedance (with IMP57 optional accessory)
Curve B, C, D, and K MCBs and type gG and aM fuses
Test I2t for verifies of short circuit conditions
Selection of length, type, and insulation of the cable under test
Selection of tripping time of the protection device under test
Non-trip earth loop impedance
Phase sequence indication
TFT display with touch-screen
Programmable timer
Programmable thresholds
Internal memory
USB interface for PC connection
USB interface for keyboard, printer and barcode reader connection
What's In The Box:
(1) Power cord
(2) Test cable red, 3m
(2) Test cable black, 3m
(1) Test cable blue, 3m
(1)Test cable green, 3m
(1) C2033X : Cable 3 wires with Shuko plug
(2) Cable with 5kV safety
(3) Test lead CAT III
(4) Alligator clip
(1) TOPVIEW2007 : Windows software + USB cable C2007
(1) Carrying bag for accessories
(1) ISO9000 calibration certificate
(1) User manual on CD-ROM
91) Quick reference guide
