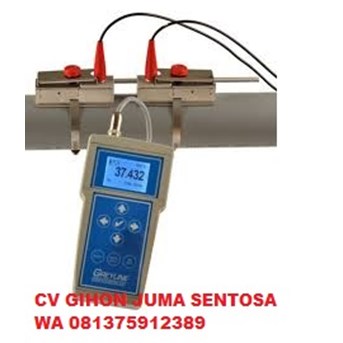

GREYLINE PTFM 1.0 Ultrasonic Flow Meter

The Greyline Instruments PTFM 1.0 ultrasonic flow meter uses transit time technology to make accurate flow measurements of clean liquids with less than 2% solids or gas bubbles; such as water, glycol, oils and chemicals; in full pipes. The PTFM 1.0 is is fast and easy to operate making it ideal for flow troubleshooting, balancing and checking performance of permanent flow meters. The non-contact transducers quickly attach to the outside of a pipe while the built-in keypad and calibration menu let you set up the instrument in minutes. Use the PTFM 1.0 for projects where a permanent flowmeter is not required or to temporarily replace installed flow transmitters.

The PTFM 1.0 uses non-intrusive SE16B flow transducers which work with pipes from 1/2" to 48" in diameter. The ultrasonic signal works through common pipe materials including carbon steel, stainless steel, ductile iron, cast iron, PVC, PVDF, fiberglass, copper, brass, aluminum and pipes with bonded liners including epoxy, rubber and Teflon. Transducers can be mounted without shutting down flow and there is no obstruction or pressure drop. It measures and totalizes forward and reverse flow.

The Greyline PTFM 1.0 is portable and powered by a built-in NiMH battery that provides up to 18 hours of continuous operation. With its 4-20mA output you can use the PTFM 1.0 as a spare transmitter in critical applications. For flow studies and troubleshooting, use the built-in 300,000 point data logger. Data logs can be retrieved with the data logging software. Simply connect the USB output directly to your PC or Laptop to download data logger files.

Features
For clean liquids in full pipes with less than 2% solids or gas bubbles
Non-contacting clamp-on transit time ultrasonic transducers for pipes from 1/2" to 48"
Flow range: ±0.07 to 39 ft/sec (±0.02 to 12 m/sec) typical
Accuracy: ±1% of reading or 0.1 ft/sec (0.03 m/sec), whichever is greater
Repeatability: ±0.25%
Linearity: ±0.25%
4-20mA and USB output
Large backlit flow rate display and totalizer
Built-in NiMH battery for up to 18 hours continuous operation
Programmable 300,000 pointy data logger, time and date stamped or formatted flow reports including total, average, minimum, maximum and times of occurrence
Built-in 5-key calibrator

What's in the Box
One pair of SE16B clamp-on ultrasonic for 1/2” to 48” pipes
One pair 12 ft. coaxial transducer cables with BNC connectors
Stainless steel transducer brackets, mounting clamps, and alignment bar
Silicone coupling compound
Data logging PC software for Windows™
1 set 4-20mA and USB cables
Installation and operation manual
