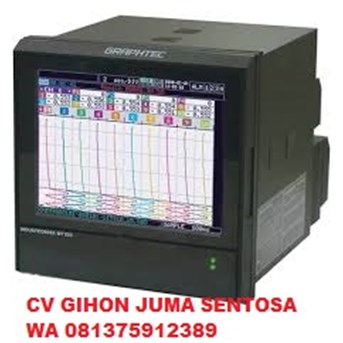

The Graphtec MT100 offers such modern conveniences such as Ethernet and USB 2.0 interfaces are included, along with a USB flash memory port, so the user can easily get the data out of the Graphtec MT100 and transfer it to a computer. Data are normally captured into the Graphtec MT100’s large internal memory, at rates selectable from 100 ms to 1/hour! The user can record with the Graphtec MT100 for hours, days, or even weeks with the 12 MS memory.
High Isolation
The Graphtec MT100 is built in 125 VAC RMS / 350 VDC isolation on all the analog channels, for a few reasons. First, it means the user can hook up your GL midi datalogger without the normal worry about ground loops, providing the user more flexibility and control. Second, it just makes good technical sense to isolate the inputs, and is even a nice safety feature. Few products in this class provide this kind of isolation as standard…or even as an option!
With its dedicated USB port for flash drives, the Graphtec MT100 makes it easy to transfer data on to your PC or laptop for direct processing. Modern conveniences such as Ethernet and USB 2.0 interfaces are included, along with a USB flash memory port, so the user can easily get the data out of the Graphtec MT100 and transfer it to your computer. Data are normally captured into the Graphtec MT100’s large internal memory, at rates selectable from 100 ms to 1/hour! The user can record for hours, days, or even weeks with the 14MB memory.
Features:
Isolated 10 channel multi function input
Voltage/Temperature/Humidity/Pulse/LogicLong term large size data can be stored directly into the USB memory
Real time data transfer by LAN/USB
Dust proof, drip proof, vibration proof for use at harsh environment
Built-in 5.7" TFT color LCD display
Built-in Ethernet and USB 2.0 interfaces
Weight of 2.1kg and dimensions (144mm x 144mm x 200mm)
Direct recording to USB memory stick
12MB Built-in Non-volatile memory retains data even after the MT100 is turned off
Voltage (20mV to 50V ), Temp Thermo-couplers (K, E, J, T, N, R, S, T, B, W) and Humidity
Up to 200 Multi-function PhotoMOS relay isolated input channels
16-bit A/D converters (14-bit processing)
Max Sample rate of 10 Samples/second
Statistical analysis functions
What's In The Box:
(1) User Manual
