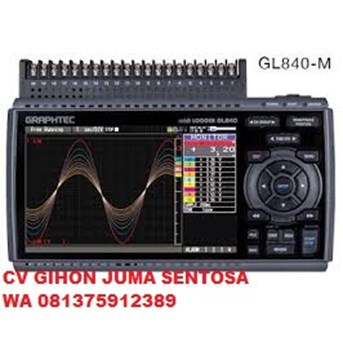

The Graphtec GL840 data logger is a standalone multichannel data logger with isolated universal input. In addition to accommodating numerous measurements, the GL840 includes many communications options and advanced functions making it an incredibly versatile data acquisition instrument for a wide array of applications.
The GL840 has 20 analog input channels, isolated so that wiring errors or overloaded channels do not affect neighboring channels. The system is easily expandable to up to 200 channels by adding the optional B-566 terminal base unit and input terminal units (B-564 or B-565). Input terminal blocks can be connected directly via daisy chain or by using cable. This allows the input terminals to be placed in separate =locations depending upon the requirements of the application.
The GL840 has two SD card slots which support up to 32GB of memory which can hold over a year's worth of data depending upon the sampling rate. A full color, 7-inch TFT display allows user to view data in waveform or digital form while also displaying parameter settings.
The Graphtec GL840 includes a number of communications features which allows integration with other devices and easy file sharing. A wireless LAN module (B-568) can be added to connect the GL840 with Graphtec GL100-WL modules. This expands the measurement variety of the GL840 by utilizing sensors available to the GL100-WL which will relay data directly to the GL840. The GL840 can also be connected to a LAN via a WLAN access point. Measured data can then be monitored via a PC or smart device using the application software. Configuration can also be set via the network.
Features:
Suitable for temperature measurement in multiple channels
Withstands voltages up to 350 Vp - p (1 min.)
Max voltage: 60 Vp - p
20-Channel standard sampling
Wireless LAN capability
Remote monitoring and datalogging
Flexible input system for wide array of applications
RTD, T/C
Ability to access additional (GL100) sensors and adapters
Extended memory capacity using SD memory card
Max sampling interval up to 10 ms
Wirelessly connects to smartphones using Graphtec's App
What's In The Box:
(1) AC power adapter
(1) Quick reference guide
(1) 4GB SD Memory Card
(1) Software & Manuals (CD)
(1) Calibration cert
