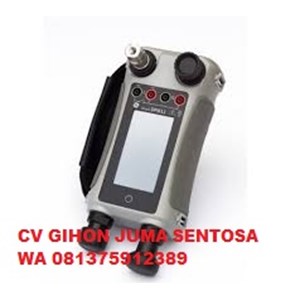

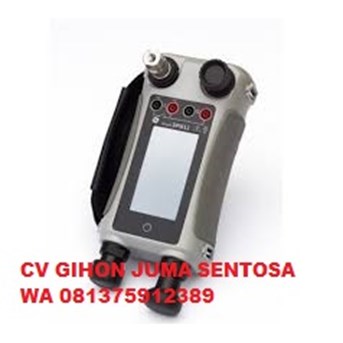

GE Druck DPI612 Handheld Pressure Calibrator

The Druck DPI612-HFP-1000 Pressure Calibrators are the next generation of GE Druck calibrators that combine pressure generation, signal measurement and loop power in single instrument. Like the DPI 611, they are robust and easy to use but with the additional functionality of interchangeable pressure modules that allow simple in the field re-ranging. They provide all the convenience of the Druck DPI 610/615 series with significantly improved generation capabilities, higher accuracy and simplified touch screen operation.

Building on the technical legacy and more than three decades of experience in pressure sensor development and calibration, the DPI612HFP1000 provides all the convenience and reliability of a true “Druck,” yet offers interchangeable pressure modules, higher accuracy and significantly improved pressure generation.

The hFlex hydraulic version has an internal reservoir for hydraulic oil or water, a priming pump to expel air from the connected system and an intensifier to quickly and easily generate pressure. This product includes a pressure module with a hydraulic pressure range of 0 to 1000 bar and 0 to 15000 psi.

Features:
Maximum working pressure: 1000 bar / 15000 psi hydraulic
Pressure Range: 0 to 700 (bar), 0 to 10000 (psi) Gauge/Absolute
The complete pressure calibration tool: pump, measure, analyze
Best in class Pressure accuracy
Fast and dependable from vacuum to 1000 bar/15000 psi
Easy to use touch screen
No in-the-field leaks with quick-to-fit pressure adaptors & hoses
Maximum vacuum: -95% of atmospheric pressure
Pressure media: Non-corrosive gases

What's in the Box:
(1) Battery Charger
(1) Carrying Strap
(1) Set of Test leads
(1) User manual
(1) Calibration Certificate
(1) 1 meter Hydraulic hose
(1) Fluid bottle
(1) Rechargeable battery
(1) PM 620-23A pressure module
