Measures, computes, and displays 3-Phase Power
On 3- and 4-wire Balanced or Unbalanced Loads.

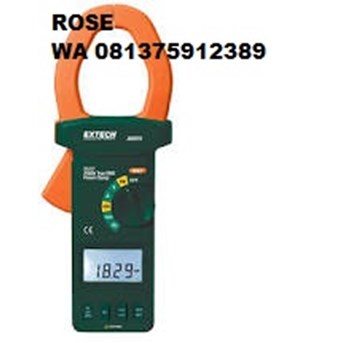

The Extech 382075 AC/DC 3-phase clamp power analyzer measures, computes, and displays 3-Phase power on balanced or unbalanced loads.
Other features of the Extech 382075 AC/DC 3-phase clamp power analyzer include display lead / lag current / voltage phase shift in degrees, store / recall last 5 readings, and dual displays.
The Extech 382075 AC/DC 3-phase clamp power analyzer comes complete with test leads, 9V battery, and convenient carrying case.
Features
Display Lead/Lag Current/Voltage phase shift in degrees
Store/recall last 5 readings
DC Current Auto-Zero
Dual displays: kW+PF, kVA+kVAR, phase-angle+Hz, Volts+Hz, or Amps+Hz
Advanced Relative and Min/Max functions
General Specifications
Conductor Size Cable Φ 55mm. (approx.) Bus Bar 65mm (D) x 24mm (W)
Display Dual 4-digit 9999 count LCD
Sampling time 0.5 seconds for Voltage and Current; 1.6 seconds for Watts
Overload Indication ‘OL’ displayed on LCD
Power 9V Battery (Heavy Duty Type)
Power consumption Approx. 28mA
Operating conditions 4 °C to 50 °C <85% RH
Dimensions 10.7" (L) x 4.4" (W) x 1.8" (H);271mm (L) x 112mm (W) x 46mm (H)
Weight 22.8 oz. / 647g (with battery)
