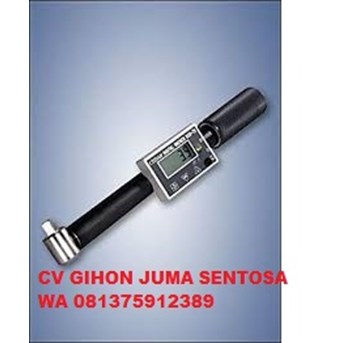

The DIW is a torque measuring manual wrench designed for verifying application or removal torque of bolts. The wrench head swivels 300° and can be used in tight places. You'll get consistent readings no matter where or how the wrench is gripped because the torque sensor is centered on the drive and not up in the handle. Torque controlled wrenches can also be evaluated by comparative tests on a given fastener. Both breakaway and loosen tests can be performed. Rugged enough to be used in production. Wrench head swivels 300°
5 Ranges Available
DIW-4W Capacity: 35 lb-in / 4 N-m, 1/4" dr
DIW-15 Capacity: 130 lb-in / 15 N-m, 1/4" dr
DIW-20 Capacity: 180 lb-in / 20 N-m, 3/8" dr
DIW-75 Capacity: 55 lb-ft / 75 N-m, 3/8" dr
DIW-120 Capacity: 87 lb-ft / 120 N-m, 1/2" dr
Features
Includes 3-Point Certificate NIST calibration Certificate, ISO-17025 Cert Optional
Drive-Centered Torque Sensor apply load anywhere on the tester, not just the load point, and achieve consistent results
Wrench head swivels 300°
Displays lbf-in, lbf-ft, Kgf-cm and N-m (selectable)
Peak, Real Time and Peak Down measuring mode (selectable)
800 data memory for recall or for SPC download
Programmable High and Low setpoints with both audible beep and Green/ Red LED indicator for uniform torque tightening or GO/NO GO testing
Both CW and CCW operation
USB output for SPC capability
AC charger and carrying case included.
Runs on internal NiCad batteries (8 hour use)
Ergonomic, light weight, rugged metal construction
ISO/IEC 17025 Long-form Certificate & Test Data is optionally available
Stepless one-way clutches are included with DIW-15, DIW-20 and DIW-75
1 Year Warranty
Complete Kit
All testers come with a 3-Point Certificate traceable to NIST. ISO Certificates are available at an additional charge. All testers are sold in a complete kit with tester, hard plastic carrying case, and AC adapter/charger. All gauges can run on the internal rechargeable batteries or the AC adapter/charger. Stepless one-way clutches and ratchet clutches are sold separately.
