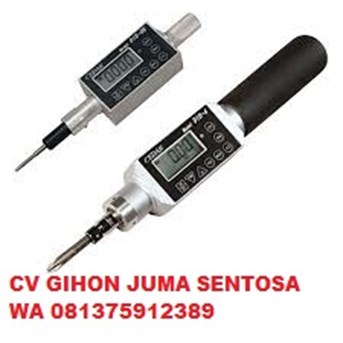

The DID is a torque measuring manual screwdriver designed for lab and production use. The large LCD display measures bi-directional torque in real-time or peak modes. USB data output allows the user to graph torque vs time with optional SW-1SD software.
The DID has an accuracy of ± 0.5% F.S., ±1 LSD and has programmable setpoints that provide both an audible beep and green/red LED indicator for uniform tightening or GO/NO GO testing. In addition, it features a programmable counter that minimizes assembly errors by identifying mis-tightening and/or defective screws. Optional ratcheting clutch allows for convenient tightening or loosening. Use the 800 internal memory for data recall or USB download for SPC.
The DID substantially reduces scrap and rework costs by eliminating over and under-tightening and is ideal for use in a wide variety of applications including the manufacture of electronic, appliance and aerospace assemblies.
2 Models
DID-05: Capacity: 4.500 lb-in / 50.00 N-cm
DID-4A:Capacity: 35.00 lb-in / 400.0 N-cm
Features
Includes 3-Point Certificate NIST Traceable Calibration Certificate, ISO-17025 Cert Optional
Peak, Real Time and Peak Down measuring mode (selectable)
Statistics: number of data, Max, Min, Avg
Programmable screw tightening counter
DID-4 uses standard 1/4" bits, DID-05 uses 4mm ROUND or Half ROUND bits.
Selectable units ozf-in, lbf-in, kgf-cm, N-cm and N-m
Runs on internal NiCad batteries (8 hour use) Auto shut-off after 10 min. of non-use
Programmable High and Low set points with both audible beep and Green/Red LED indicator for uniform torque tightening or GO/NO GO testing
USB virtual COM port sends peak (1 data) or continuous data (12 or 180 data/second)
800 data memory for recall or for SPC download
Programmable Auto Zero function resets unit to zero for easy operation
2 Phillips tips, AC charger and carrying case included
2-Year Warranty
DID-05 features a built-in 1 way clutch
Complete Kit
DID-4A includes 1/4″ female hex adapter, 2pcs 1/4″ Phillips bits
DID-05 includes Phillips and Flat bits
Both models include an AC Adapter charger, carrying case and calibration cert.
