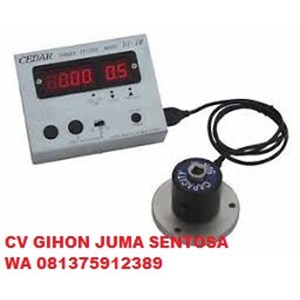

CEDAR DI-1M-IP500 Torque Tester for Air Tools & Impact Wrenche

The DI-1M Digital Torque Tester is perfectly suited for on-the-spot calibration of impact drivers and air tools. Calibrate your own air tools and impact wrenches and save down time. These fast response units give a digital readout of peak value in either clockwise or counterclockwise direction and also indicate the number of blows for a selected time period from 0.1 to 9.9 seconds. These instruments have an accuracy of ±0.5%, ±1 LSD and lbf-in/lbf-ft, kgf-cm/kgf-m, or N-cm/N-m units are selectable. Virtual RS-232 serial output, auto zero reset, auto shutoff and low battery indicator complete the set of features. It is powered by an internal NiMH battery or the included AC adapter.

Operation Modes
Peak, Real Time and Peak Down modes are selectable. Peak mode captures the peak torque achieved during a test. PEAK reading will not change until a higher value is measured. Real Time mode displays the real time transient torque value. Peak down captures the critical first peak value and will not change even if a higher value is subsequently measured.

Features:
Includes NIST-Traceable Calibration Certificate
Easy to read LED panel displays reference torque value in lbf-ft, kgf-m and N-m (selectable);
      and number of blows for selected period (0.1 - 9.9 sec)
Accuracy: ±0.5% F.S. ±1 LSD ( 32° to 100°F)
USB data output (peak data only)
Peak, Real Time and Peak Down measuring modes (selectable)
Ergonomic light weight, torque tester with heavy duty metal construction
Runs on internal NiCad batteries (8 hour use)
ISO/IEC 17025 Long-form Certificate & Test Data is optionally available
1 Year Warranty

What's In The Box:
(1) 3 Point Certificate traceable to NIST
(1) Remote sensor
(1) Display unit
(1) Cable and AC adapter/chargerThe DI-1M also provides peak data for SPC (statistical process control) via the USB Virtual COM port. Click on the link here for torque tester data acquisition software.
