Ultra Compact Self Contained Design

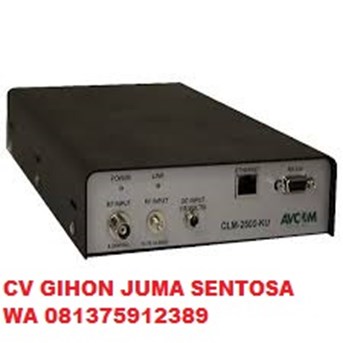

The Avcom CLM2500KUTX enables the user to directly monitor KU-band uplink signals. This full-featured spectrum analyzer provides an ethernet output to monitor signals at the M&C location. Expensive L-band IFL connections are eliminated. The spectrum analyzer provides a full spectrum signal via the free Avcom GUI interface. The interface can display up to 12 feed signals on the same screen. Full control is available and the GUI is easily integrated into most M&C software platforms.
Performance & Specifications
The Avcom CLM2500KUTX is designed for the measurement and analysis of communications and broadcast carriers, making uplink, downlink, L-Band carriers, IF, and 10MHz reference signals easy to measure, monitor, and store. The CLM2500KUTX provides excellent frequency and amplitude accuracy along with resolution band-width (RBW) selection from 10 kHz to 1 Mhz. This is required to allow viewing and monitoring of small Telemetry, Tracking, Command Systems (TT&C), data carriers found in many satellite communications markets, spread spectrum, and Wi-Fi as well.
Versatile Remote Control Software (GUI)
The Avcom CLM2500KUTX can provide discrete remote monitoring and control from anywhere in the world. The CLM2500KUTX is monitored and controlled using the Avcom Remote Control Software via serial port, USB, or Ethernet. The Remote Control Software has an intuitive user interface that is easy to use with no special training required. It allows remote monitoring and control from your network or over the internet. Features include screen shot capture recording, SNMP for alarm/monitoring, markers, and Automated Data Acquisition (DAQ) with tolerance comparison, and integrated email alerts to name a few. The Remote Control Software is available for Windows, Mac, and Linux.
Features:
Features 2 Bandwidth Ranges:
5 MHz - 2500 MHz
13.75 GHz - 14.5 GHz
KU-Band; Uplink or Downlink Bands Monitored at the Antenna
Eliminates IFL and Enables IP-based Remote Monitoring
Compact Fully Enclosed Remote Spectrum Analyzer
OEM Applications
MIL-STD 810F/G Certified
Precise And Accurate Amplitude And Frequency Response
What's In The Box:
(1) Users Manual
