AMPROBE DGC1000A Ground Resistance Tester

Update Terakhir

10 / 12 / 2019

Min. Pembelian

1 Unit

Dilihat Sebanyak

16 kali

Harga

CALL

CV. Gihon Juma Sentosa Merupakan Distributor Untuk Kebutuhan Instrument Industri, Bahan kimia Merck,Instrument laboratorium pendidikan. Kami Menyediakan Gas Industry , alat laboratorium, Alat Survey dan Bahan Kimia teknis kebutuhan skala besar.

Perhatian !

Perusahaan ini terdaftar sebagai Free Member. Hindari melakukan pembayaran sebelum bertemu penjual atau melihat barang secara langsung. COD (Cash On Delivery) atau bertemu langsung dengan penjual merupakan metode transaksi aman yang kami sarankan.

Deskripsi Produk Deskripsi

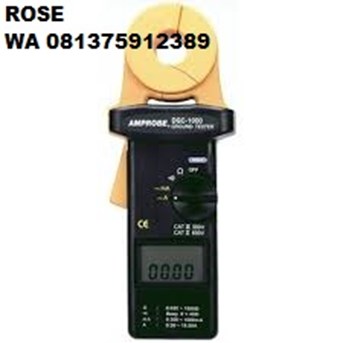

Detail AMPROBE DGC1000A Ground Resistance Tester

CLAMP METER

User-friendly and accurate. Think safety and Amprobe's DGC-1000A ground resistance tester second. Use the on-board memory and data logging features to make your work more efficient.

Features:
Accurate ground resistance measurement from 0.025 to 1500 Ohms
TRMS current measurement including leakage current
Accurate readings regardless of power quality in less than 10 seconds
Continuity beep if the resistance is lower than 40.00 Ohms
Simple and easy to use, no test leads or auxiliary electrodes necessary
Data logging capability - 116 records
Individual data point recording
User selectable High & Low ohm audible alarms
Auto power off (can be disabled)
Low battery indicator
Large LCD display

Specification:
Ground Resistance:     0.025 - 0.250 Ohms (± 1.5% ± 0.05 Ohms, resolution 0.002 Ohms)
Ground Resistance:     0.250 - 1.000 Ohms (± 1.5% ± 0.05 Ohms, resolution 0.02 Ohms)
Ground Resistance:     1.001 - 9.999 Ohms (± 1.5% ± 0.1 Ohms, resolution 0.02 Ohms)
Ground Resistance:     10.00 - 50.00 Ohms (± 2.0% ± 0.3 Ohms, resolution 0.04 Ohms)
Ground Resistance:     10.01 - 99.99 Ohms (± 2.0% ± 0.5 Ohms, resolution 0.04 Ohms)
Ground Resistance:     100.0 - 200.0 Ohms (± 3.0% ± 1.0 Ohms, resolution 0.4 Ohms)
Ground Resistance:     200.1 - 400.0 Ohms (± 5.0% ± 5 Ohms, resolution 2 Ohms)
Ground Resistance:     400.0 - 600.0 Ohms (± 10% ± 10 Ohms, resolution 5 Ohms)
Ground Resistance:     600.1 - 1500 Ohms (± 20%, resolution 20 Ohms)
TRMS Ground / Leakage Current:     0.200 - 1.000 mA (± 2.0% ± 0.05 mA)
TRMS Ground / Leakage Current:     1.00 - 10.00 mA (± 2.0% ± 0.03 mA)
TRMS Ground / Leakage Current:     10.0 - 100.0 mA (± 2.0% ± 0.3 mA)
TRMS Ground / Leakage Current:     100 - 1000 mA (± 2.0% ± 3 mA)
TRMS Ground / Leakage Current     0.200 – 4.000 A (± 2.0% ± 0.03 A)
TRMS Ground / Leakage Current:     4.00 – 30.00 A (± 3.0% ± 0.03 A)

DGC-1000A
Accurate ground resistance measurement from 0.025 to 1500 Ohms
TRMS current measurement including leakage current
Accurate readings regardless of power quality in less than 10 seconds
Continuity beep if the resistance is lower than 40.00 Ohms
