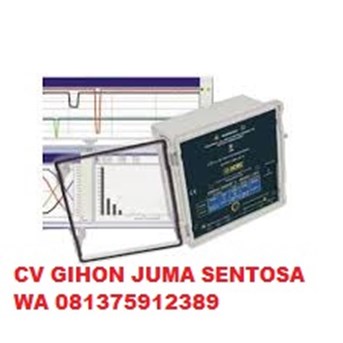

The Simple Logger® II Model L264 is a 4-channel AC/DC voltage recording device powered by alkaline batteries. Voltage inputs are directly measured up to 600VAC or DC. Harmonic measurements are calculated from 64 samples taken on each AC cycle measured and are only available in real-time from the Simple Logger® II Control Panel in the DataView® software.
Bluetooth communication provides for the transfer of data from the instrument's internal memory to the computer for monitoring, storing and/or analysis.
The Simple Logger® II, Model L264, stores TRMS measurements at user programmable rates from eight times per second to one per day. TRMS calculations are performed on a single line cycle. The main advantage of the logger is its ability to perform a variety of recording tasks with easy and intuitive setup from a computer using DataView® software.
Features:
TRMS voltage recording up to 600VAC/DC
64 samples per cycle
Programmable storage rates from 8 per second to 1 every day
Four user selectable storage modes
Stores up to 1,000,000 measurements in non-volatile memory
Up to 180 days of operation from standard alkaline batteries
Lightweight, compact, fits anywhere
Six LED indicators quickly and clearly display logger status
Includes FREE DataView® software for data storage, real-time waveform display, analysis & report generation
Wireless Bluetooth data communication
Includes set of 5 color-coded (4-red/1-black) 5 ft leads with color-coded alligator clips
600V CAT IV; 1000V CAT III
What's In The Box:
(1) AEMC L264 Simple Logger II
(1) Bluetooth adapter
(1) Set of 5 color-coded (4-red/1-black) 5 ft leads with color-coded alligator clips
(12) Color-coded input ID Markers
(1) Mounting hardware
(1) DataView software
(4) 1.5V C-cell alkaline batteries
(1) User Manual
