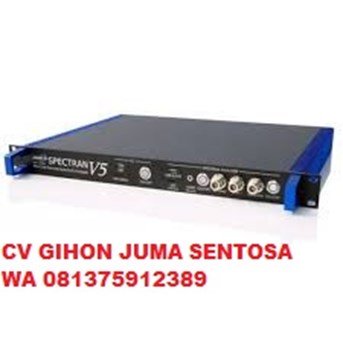

The Aaronia RSA80160 Spectran V5 Rack Mount RF Remote Spectrum Analyzer 9 kHz - 16 GHz is designed to fit a standard 19 inch single rack, and operates with internal battery and remote control via USB. This is ideal for remote data logging and real time monitoring in applications where the spectrum analyzer must remain in a fixed (rack mounted) position, such as laboratory testing, pre-compliance testing, RF chambers, etc. and in instances in which the analyzer may need to be controlled from a remote location. The RSA 80160 is perfectly suitable for stationary use in laboratories as well as for mobile use in measuring vehicles or satellite broadcasting vans due to the low power consumption.
The RSA 80160 is optimized for the radio frequency ranges of 9 kHz - 16 GHz, and includes full-featured real time spectrum analyzer software (RTSA Suite) allowing remote data monitoring, extended logging, and remote spectrum analyzer control. The RSA 80160 is housed in durable aluminum (ideal for RF shielding) and includes an upgraded internal preamplifier to pick up even the weakest of signals as well as up to 24TB of internal storage for remote data logging and playback. The RSA 80160 is remote controllable through the USB interface or Lan/Ethernet, allowing a continuous logging and streaming of any frequency range and direct access to the unit through a PC connected to the Internet.
Features:
Frequency range: 9 KHz - 16 GHz
DANL With Preamplifier: -150dBm (1 Hz)
Max Power at RF input: +20dBm
Resolution Bandwidth (RBW): 1 Hz - 3 MHz
Real Time Bandwidth (RTBW): 88 MHz
Units: dBm, dBµV, dBV, dBmV
Detectors: RMS, Min / Max, AVG
Attenuator Range: 45dB (0.5dB steps)
Demodulator: AM, FM
Input: 50 Ohm N, RF-input (f)
Accuracy: +/- 1.5dB (typical)
Interface: USB 2.0 (standard)
Weight: ~10.6 lbs
Designed to fit a standard 19 in. single rack
Operates with internal battery and remote control via USB
Continuously streaming and storing from any spectrum of interest
Allows the monitoring of multiple sites from one centralized location
Eliminates trips to difficult locations
Data transfer via TCP / IP
Up to 24TB data storage inside the remote unit
Sample rate/second: > 5 million
Polyphase Filter Technology
Extremely low noise (up to max. -170dBm/Hz DANL with amplifier)
Included real-time software RTSA Suite with analysis features
Marker function with unlimited number of different markers
Customizable Alarm, Trigger, and Limits Functions
Views: Spectrum, Persistence Spectrum, Spectrogram / Waterfall, Histogram
What's In The Box:
(1) Model XPRE-Option 20db internal pre-amplifier
(1) AC power adapter/charger
(1) USB containing RTSA suite software and user manual
