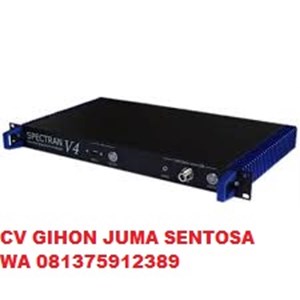

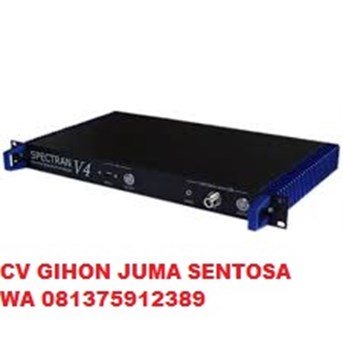

The Aaronia RSA5000 EMF Remote Spectrum Analyzer 1 Hz-1 MHz is designed to fit a standard 19 inch single rack, and operates with internal battery and remote control via USB. This is ideal for remote data logging and real time monitoring in applications where the spectrum analyzer must remain in a fixed (rack mounted) position, such as laboratory testing, pre-compliance testing, RF chambers, etc. and in instances in which the analyzer may need to be controlled from a remote location. The RSA 5000 is perfectly suitable for stationary use in laboratories as well as, thanks to the low power consumption, for mobile use in measuring vehicles or satellite broadcasting vans.
The RSA 5000 is optimized of the EMF frequency ranges of 1 Hz - 1 MHz, and includes spectrum analyzer software allowing remote data monitoring, extended logging, and remote spectrum analyzer control. The RSA 5000 is housed in durable aluminum (ideal for RF shielding) and includes internal storage for remote data logging and playback. The RSA 5000 is remote controllable through the USB interface or Lan/Ethernet, allowing a continuous logging and streaming of any frequency range and direct access to the unit through a PC connected to the Internet.
Features:
Frequency range: 1 Hz - 1 MHz
Analog Input: 2µV to 200mV (typ.)
Resolution (RBW): 0.3 Hz to 1 MHz (1-3-10 step)
Units: Volt
Detectors: RMS, Min/Max
Demodulator: AM, FM
Input: N input (f)
Accuracy: 3% (typ.)
Interface: USB 2.0/1.1/LAN
Single 19 in. rack mount unit
Weight: 3450gr
Integrated PC: Intel Celeron G530 2.4GHz, 2x2GB SO-DiMM DDR3, 1066MHz RAM, 320GB HDD (5400rpm)
External Ports: 2x USB 2.0, 2x USB 3.0, 1x Audio, 1x 10/100/1000 Mb/s Ethernet, 1x DVI-I (Analog,Digital), 1x HDMI, 1x eSATA
Power supply: 19.5V (7.9A max.)
Operating system: Linux
Internet flash software updates
Digital Signal Processor
Real-time remote control via USB
Audio out for the use of PC based FFT analyzer software
3mm aluminum housing
Free Mac OS, Linux and Windows software
Full remote control from any location with any device (PC,PDA,IPad,Smartphone)
Continuously streaming and storing from any spectrum of interest
Allows the monitoring of multiple sites from one centralized location
Eliminates trips to difficult locations
Integrated Celeron or i5 PC with internal storage for continous data logging
Spectrum Display, Waterfall, Histogram, Limits, Time-Domain and more
Limit calculations according to DIN/VDE 0848, ICNIRP, EN55022, EN55011 etc.
Customizable Alarm, Trigger, and Limits Functions
What's In The Box:
(1) Model XPRE-Option 20db internal pre-amplifier
(1) AC power adapter/charger
(1) CD with analyzer software and user manual
